Casing

Short Description:
  1. Place of Origin: China
  2. Brand Name: Wentrica
  3. Price: Negotiate
  4. Certification: ISO9001:2000, Soncap, Intertek, SGS
  5. Packaging Details Shrink wrap or carton or pallet
  6. Payment Terms 30% T/T in advance, 70% balance before loading
  7. MOQ 800 sqm for panel, 1000m trim moulding

Casing Explained

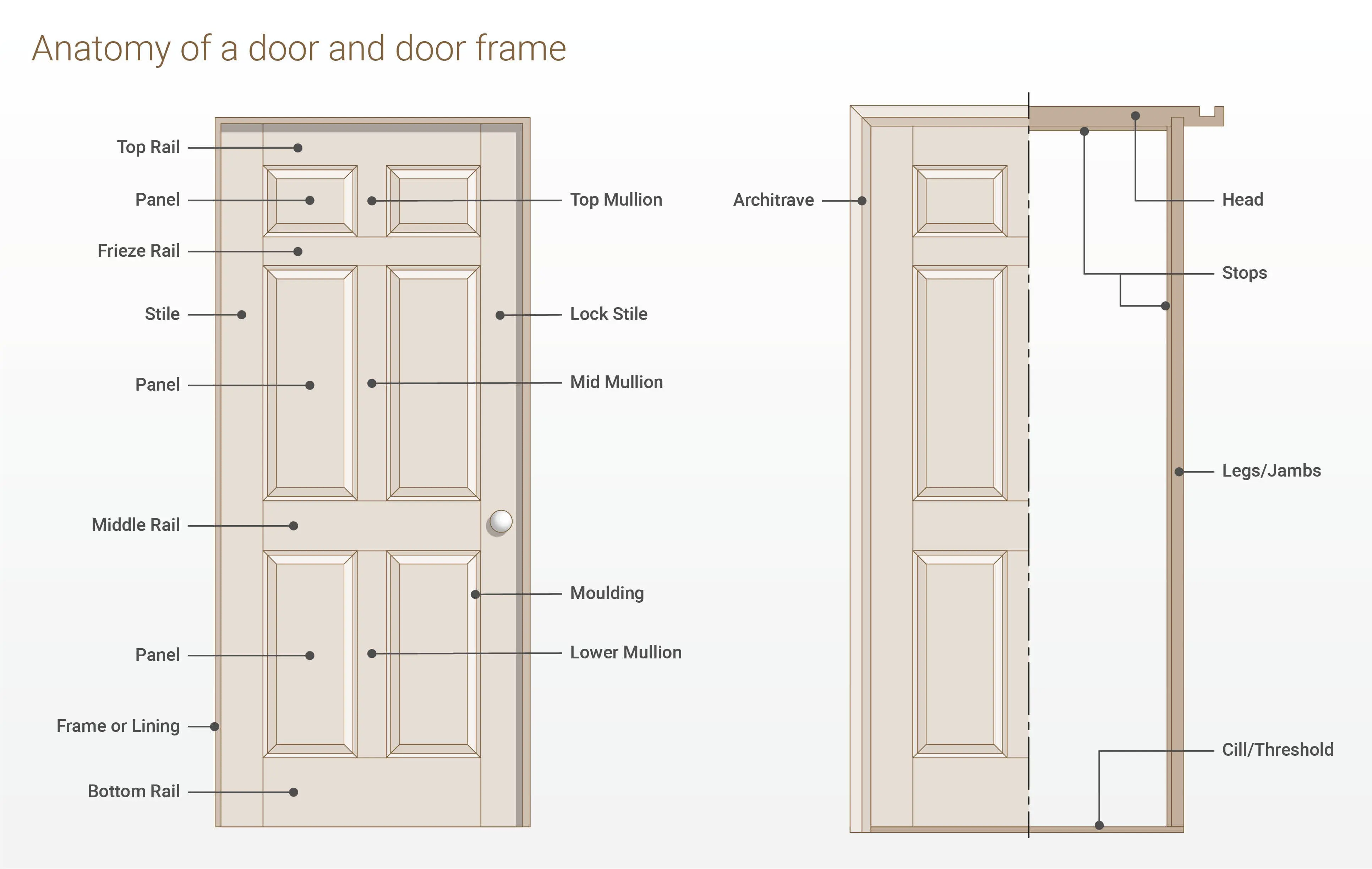

A jamb, in architecture, is the side-post or lining of a doorway or other aperture. The jambs of a window outside the frame are called “reveals.” Small shafts to doors and windows with caps and bases are known as “jamb-shafts”; when in the inside arris of the jamb of a window they are sometimes called "scoinsons."

Wood-plastic composites are composite materials made of wood fiber/wood flour and thermoplastic such as PE, PP, PVC, or PLA. In addition to wood fiber and plastic, WPCs can also contain other ligno-cellulosic and/or inorganic filler materials.

Casing Feature

WPC also known as Greenwood is new age product which combines the properties of wood and plastic offering a highly durable material. Find our product features below.

  1. Waterproof, fadeproof and moistureproof
  2. Resist cracking, splitting, warping or deforming
  3. Bacterial & Termite Proof Material
  4. No Insect Damage and Ready to Install
  5. Lifetime No Rot Warranty
  6. Low Maintenance
  7. High Energy Efficiency
  8. Paintable with Oil or Latex Paint
  9. Fire resistant
  10. High nail-holding power like the wood
  11. simple to cut, drill and bend
  12. Hinge or lock holes pre-drill available
  13. Smooth & Woodgrain surface, color is optional
  14. Can be recycled, truly green and environmentally friendly

Casing Spec

Product Name WPC Casing Main Material 80% PVC, 20% Wood additives
Color White, Primed or customized Surface Smooth or Woodgrain
Size 7ft, 8ft, 10ft, 12ft or customized Package Pallet with film
Items wpc door jamb/wpc door brick mould/wpc door mull post/wpc door astragal
Usage Exterior and interior

Casing Dimension

DRAWING DESCRIPTION DIMENSION FINISH
2.9" Casing 0.78" x 2.9" Smooth / Embossed

How Casing is made

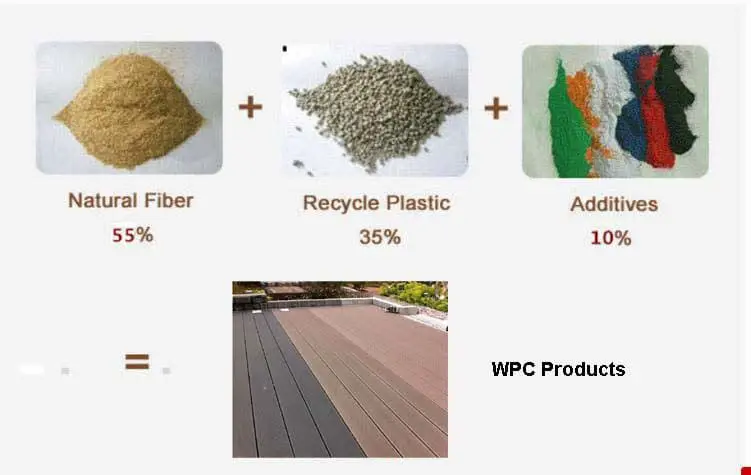

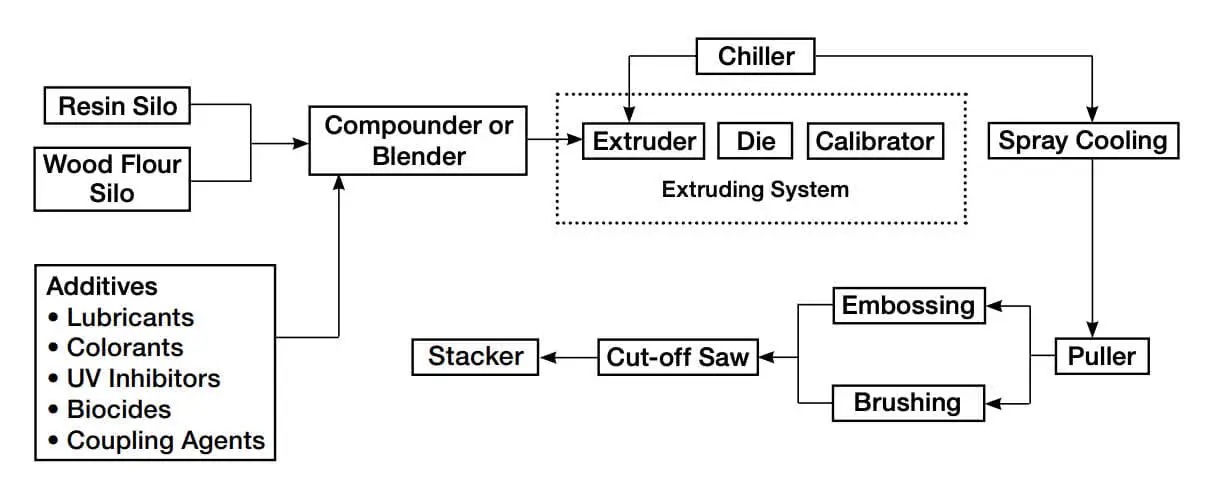

Wood-plastic composites (WPCs) are produced by thoroughly mixing ground wood particles and heated thermoplastic resin. The most common method of production is to extrude the material into the desired shape, though injection molding is also used.

Wood Plastic Composite (WPC) is a composite material made from sawdust and plastic as polymer bonding, that used in a variety of structural and non-structural applications. Nowadays, In Indonesia WPC is made from Sengon sawdust and recycled HDPE plastic. This research was conducted in order to investigate the physical and mechanical properties of WPC from Sengon sawdust in accordance with ASTM D7031. From the physical test, due to its water restrains, WPC has low moisture content, water absorption and swelling. For the mechanical properties, the bending strength and shear strength are around 40.49 MPa and 27.35 MPa, respectively. However, the WPC tensile strength is lower than common tropical wood, which is only 5.54 to 12.75 MPa, due to the absence of grain in WPC. Furthermore, the modulus of elasticity is only 2113 to 3398 MPa or around one tenth of that wood or concrete modulus of elasticity. From the withdrawal test shows that sheet metal screw type has the highest withdrawal strength compared to cut thread wood, and fine thread drywall screw. Hence, for structural application it is suggested that the WPC board is used for structural element with high moment inertia such as shear wall as its lower modulus of elasticity but has high shear strength.
